5kW Vertical Axis Wind Turbine + Solar Hybrid System
10kW Combined Wind–Solar Power for Homes, Farms & Off-Grid Sites
A vertical-axis maglev wind turbine paired with a 5kW solar array and lithium storage — two energy sources that peak at different times, engineered as one complete off-grid power system.
- Starts generating at just 1.5 m/s wind
- Near-silent maglev generator, any wind direction
- Survives 40 m/s (144 km/h) cyclone winds
- Complete kit: turbine, solar, inverter, storage
Key advantages
Maglev generator — wind other turbines waste
The rotor floats on magnetic suspension instead of conventional bearings, starting at 1.5 m/s and harvesting 10–30% more energy in the 5–8 m/s range typical of coastal and rural sites.

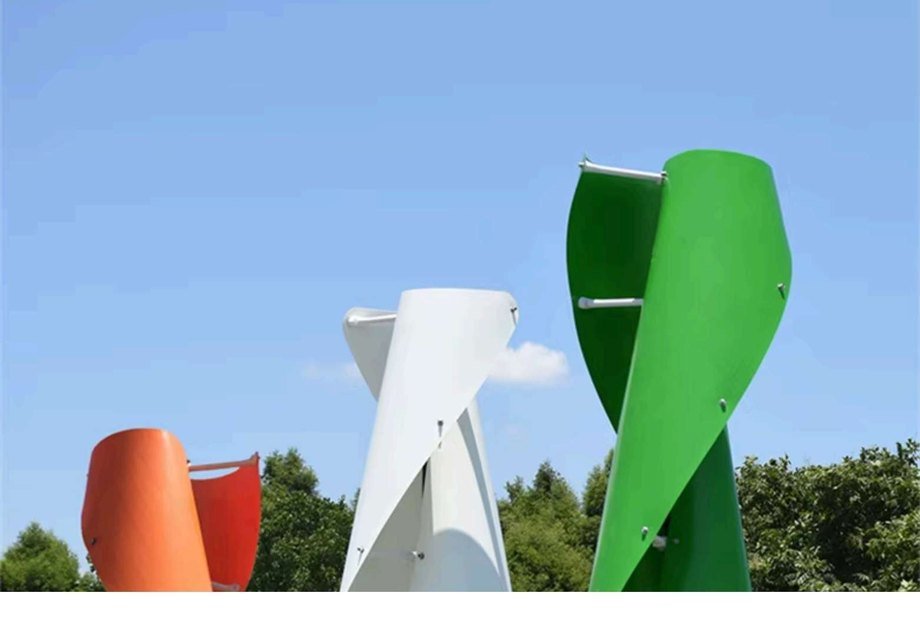

Vertical axis — silent and omnidirectional
Two-blade aerofoil on the aircraft-wing principle: works in wind from any direction without yawing, with noise difficult to measure above ambient and stress concentrated safely at the hub.
Cyclone-grade engineering
40 m/s survival wind speed, electromagnetic brake plus overload dump, IP54 generator, and an operating envelope from −25 °C to +45 °C at up to 4,500 m altitude.

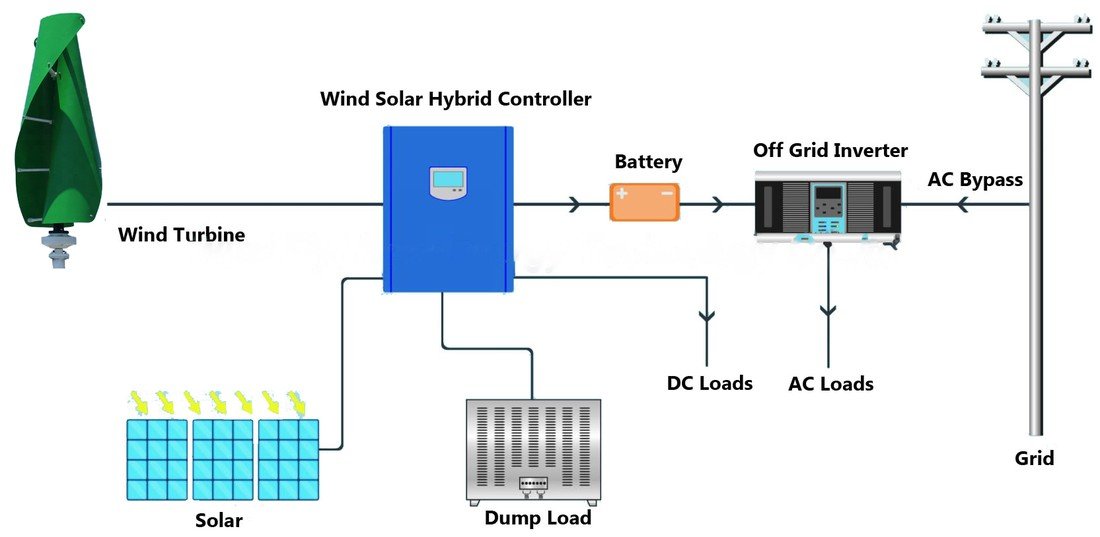

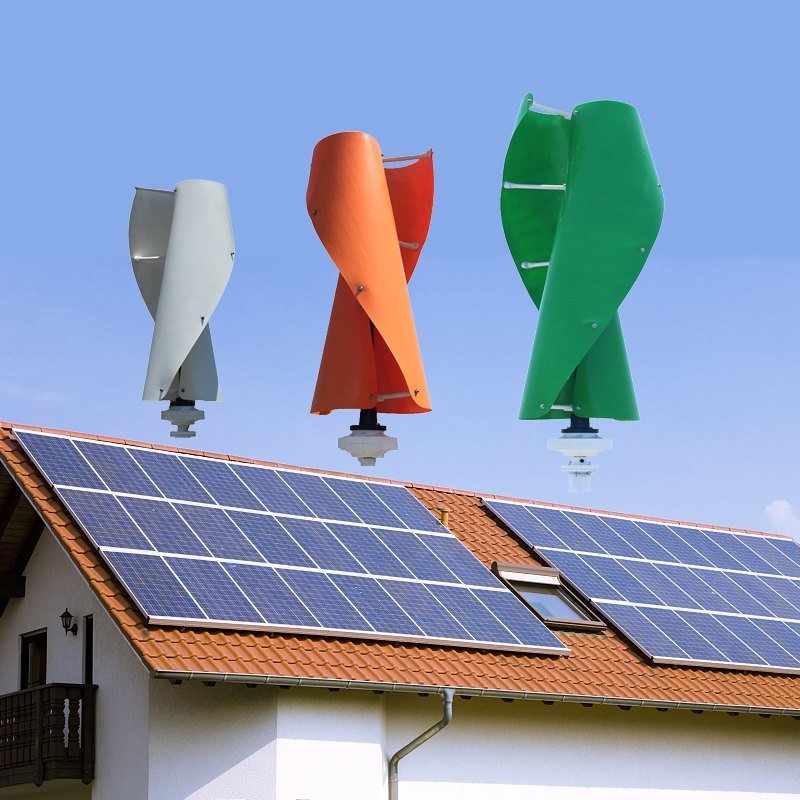

Complete hybrid system
5kW turbine + 6 m tower + wind controller + 5kW solar array + pure-sine MPPT hybrid inverter + lithium BMS storage + mounting and cabling — 10kW of combined capacity, one supplier.
Certified and configurable
CE marked, manufactured under ISO 9001 / ISO 14001 with RoHS and REACH reports. DC bus 12/24/48/96 V, masts to 12 m, battery capacity and blade material to order.
Technical specifications
| Rated power | 5,000 W turbine (peak 5,100 W) + 5 kW solar — 10 kW combined |
|---|---|
| Start-up / cut-in wind | 1.5 m/s start-up · 3.0 m/s cut-in |
| Rated / survival wind | 11–12 m/s rated · 40 m/s survival |
| Generator | 3-phase permanent-magnet, magnetic suspension (maglev) |
| Rotor | Vertical axis, 2-blade glass-fibre/basalt aerofoil |
| DC bus voltage | 12 / 24 / 48 / 96 V options |
| Protection | Electromagnetic brake + overload unloading · IP54 |
| Environment | −25 °C to +45 °C · ≤90% RH · ≤4,500 m |
| System includes | Turbine, 6 m tower (7–12 m options), wind controller, 5 kW solar, hybrid inverter, lithium storage, mounting & cabling |
| Certification | CE · ISO 9001 · ISO 14001 (RoHS / REACH reports available) |
| Pricing | From $26,000 |
| Lead time | Configuration-dependent — specify in quote request |
Applications
- Off-grid homes, farms and lifestyle blocks
- Coastal and exposed rural properties
- Remote infrastructure — telecom, pumping, monitoring
- Island and holiday properties without grid supply
- Grid-supplement systems reducing drawn units
- Marine and harbour-side installations
Why GBCORP
- One point of contract from quotation to commissioning support
- Specifications stated conservatively — we under-promise by design
- Audited OEM manufacturing under ISO 9001 / 14001
- Configuration engineering: voltage, mast, storage and blades to your site
- Export packing and sea freight to your nearest port, worldwide
Ideal for
- Rural properties in New Zealand and Australia
- Farms replacing diesel generation
- Developers of off-grid and eco-tourism sites
- Municipalities powering remote assets
Request a custom quote
Every project is custom-engineered. Tell us about your application and a GBCORP Performance Consultant will respond with a tailored proposal — typically within one business day.
